Logic Hexagon 10.1

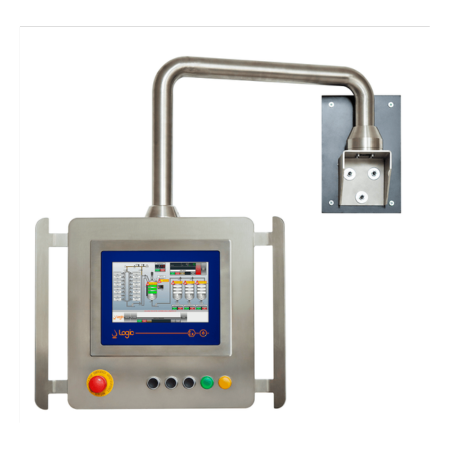

10.1-inch ATEX Zone 1/21 Certified Industrial PC for Panel or bracket mounting.
A PC that Works in Hazardous Locations and Withstands Harsh Environments.

Mobexx is UK and International Distributor for Hexagagon 10.1

The Panel PCs – Hexagon PCL-X-10.1 series, are certified for use in ATEX Zone 1/21 , and equipped with 10.1 ″ displays.

The Panel PC consists of a capacitive touch-screen operator interface screen with capacitive power button with integrated barriers up to SIL3 for Ex e / Ex i buttons and warning lights.

Equipped with the latest generation Intel® processor with low energy consumption and high thermal dissipation efficiency.

Optional integrated Bluetooth or Wi-Fi radio frequency communication modules

TECHNICAL FEATURES
Area of ​​use: Ex Zone 1/21
Display: 10.1 ” LCD with optical bounding on special glass, resolution 1280 × 800 px
Touch-screen: Industrial Grade Capacitive touch and capacitive power button with power on LED
Processor: Intel Atom® N3350, RAM: 4 Gb, Hard Disk: 64 Gb
Operating system: Windows 10® IoT Enterprise LTSC 2019
Communication interfaces: Standard: 1x LAN Gb Ex e, 1 x USB Ex e, 1x RS-485 Ex
Option on request: 2 x LAN 10 / 100Mb Ex e, 2 x USB Ex e, Bluetooth / WiFi module
Integrated Ex i active barriers: 5 x DI for standard pushbuttons (up to SIL3 dual channel)
2 x DO channels for non Ex LED (5V, 15mA – Simple Apparatus)
CERTIFICATIONS
ATEX marking: II 2 (1) G Ex eb q [ia Ga] IIC T5… T4 Gb
II 2 (1) D Ex tb [ia Da] IIIC T95 ° C… T130 ° C Db IP66
IECEx marking: Ex eb q [ia Ga] IIC T5… T4 Gb
Ex tb [ia Da] IIIC T95 ° C… T130 ° C Db IP66
MECHANICAL
Mechanical Protection: IP66 according to EN 60079-0, both front and rear. Suitable for installation without enclosure, inside non-Ex enclosures or inside Ex eb / Ex tb certified enclosures
Materials: Anodized aluminum and glass (stainless steel frame on request)
Weight & Dimensions: 8.2Kg,  319mm x 263mm x 60mm
Power supply:
24Vdc ± 10%
